Light Guide Prism

Light Guide Prism

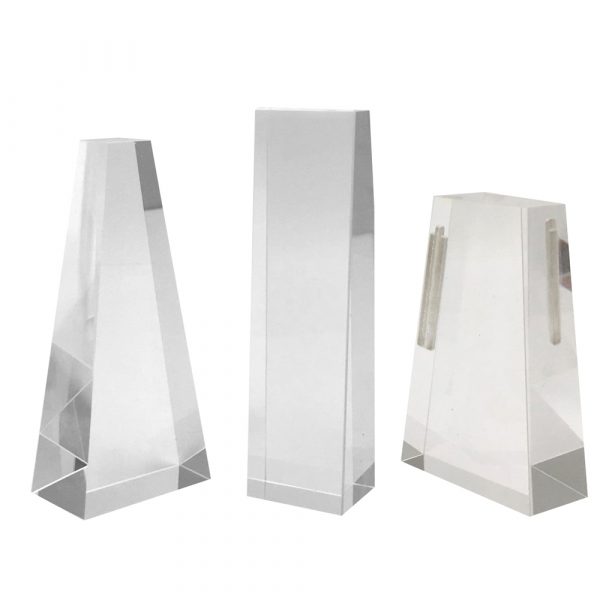

Prism Light Guides are often used for transporting and distributing light.
Light Guide Prism Drawing

Special Shape and Customized Prisms Series

Special Shape Prism
Prism Customized Shape
Prism irregular shape
Prism irregular
Prism special shape customized
Prism Special Shape

Light Guide Prism Main Specification

wdt_ID Attributes Value
95 Material N-BK7
UV Fused Silica
Sapphire etc.
96 Dimension Tolerance ±0.15mm
97 Surface Quality 80/50~40/20
98 Angle Tolerance ±3'
99 Surface Flatness λ/4@633nm
100 Clear Aperture >80%
101 Chips ＜0.2mm
102 Coating Uncoated
AR
wdt_ID Part No. Material Small Side (mm) Large Side (mm) Length (mm) Coating
71 LGP188152455 N-BK7 8.0 x 8.0 15.0 x 24.0 55 AR@400-700nm
