Waveplate Selection Guide
*You can click the below product name to new tab and view more details
Waveplate |
Part No. |
Acceptance Angle |
Light Path |
Damage Threshold |
|
Low Order Waveplate |
WPL |
Med. |
|
1GW/cm2 |
|
Zero Order Waveplate |
Glue Cemented |
WPC |
Low |
|
~10MW/cm2 |
Air Spaced(Housing) |
WPA |
Low |
~200 MW/cm2 |
||
Optically Contacted |
WPO |
Low |
~500 MW/cm2 |
||
True Zero Order Waveplate |

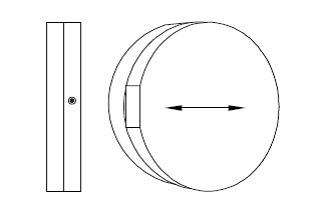

Cemented |
WPF |
High |
|
~ 10MW/cm2 |

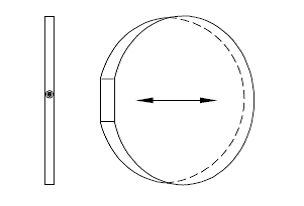

Single Plate |
WPS |
High |
|
> 1GW/cm2 |
|
Dual Waveplate |
WPD |
Low |
|
1GW/cm2 |
|
Achromatic Waveplate |
WPB |
Low |
|
~ 10MW/cm2 |
|
