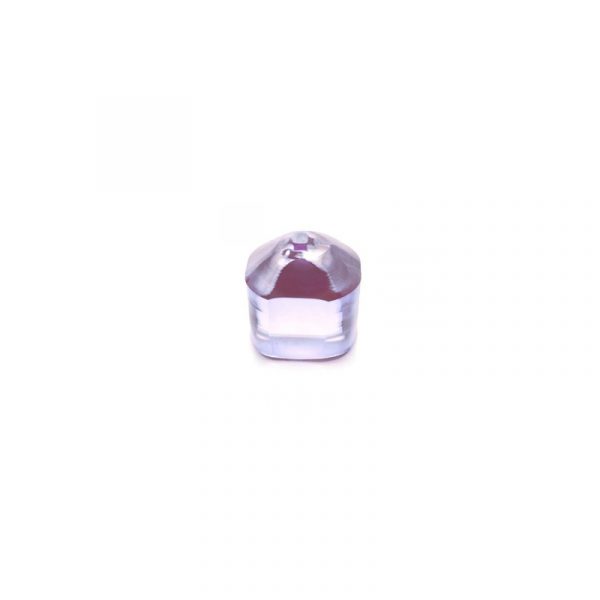

Nd:GdVO₄ Crystals
Nd:GdVO4 is ideal for laser diode pumping, the laser working material which is all-solid-state and micro-miniature lasers, has better thermal conductivity and higher output power than Yttrium Vanadate, so in high-power DPSS applications, the effect of using Nd:GdVO4 will be Better than using Nd:YAG and Nd:YVO4
Advantages:
- Low lasing threshold and high slope efficience
- Large stimulated emission cross-section at lasing wavelength
- High absorption over a wide pumping wavelength bandwidth
- Optical uniaxial and large birefringence, emits polarized laser
- Large thermal conductivity, ~ twice of that of Nd:YVO₄
wdt_ID Attributes Values
1
Orientation
A-CUT +/-0.5°
2
Dopant
0.2%~3%
3
Size & Tolerance
W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm
5
Surface quality
10/5 (MIL-O-013830A)
6
Perpendicularity
≤5’
7
Parallelism
≤10″
8
Bevel
＜0.2mm x 45°
9
Flatness
＜λ /8 @633nm
10
Chips
＜0.1mm
11
Barrel finishing
Ground finish 400# Grit
12
Coating Reflectivity
AR@1063(R＜0.2%)
AR@1063(R＜0.2%)&532(R＜0.5%)
AR@1063(R＜0.2%)&532(R＜0.5%)&808(R＜3%)
HR@1063(R＞99.8%)&HT@808(T＞95%)
13
Damage threshold
1GW/cm² 10ns 10Hz at 1064nm
14
Laser wavelength
1063nm
| wdt_ID | Attributes | Values |
|---|---|---|
| 1 | Orientation | A-CUT +/-0.5° |
| 2 | Dopant | 0.2%~3% |
| 3 | Size & Tolerance | W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm |
| 5 | Surface quality | 10/5 (MIL-O-013830A) |
| 6 | Perpendicularity | ≤5’ |
| 7 | Parallelism | ≤10″ |
| 8 | Bevel | ＜0.2mm x 45° |
| 9 | Flatness | ＜λ /8 @633nm |
| 10 | Chips | ＜0.1mm |
| 11 | Barrel finishing | Ground finish 400# Grit |
| 12 | Coating Reflectivity | AR@1063(R＜0.2%) AR@1063(R＜0.2%)&532(R＜0.5%) AR@1063(R＜0.2%)&532(R＜0.5%)&808(R＜3%) HR@1063(R＞99.8%)&HT@808(T＞95%) |
| 13 | Damage threshold | 1GW/cm² 10ns 10Hz at 1064nm |
| 14 | Laser wavelength | 1063nm |
wdt_ID Attributes Values
1
Lasing Wavelength
1062.9nm
1340.0nm
2
Emission Cross Section (E//C at 1064 nm)
7.6x10⁻¹⁹cm²
3
Peak absorption wavelength
808 nm
12
Absorption Cross Section (E//C at 808 nm)
4.9x10⁻¹⁹cm²
13
Absorption Linewidth
3nm
14
Relaxation Time of Terminal Lasing Level
100µs
15
Absorption Coefficient (1% Nd)
57cm⁻¹ with E//C @808 nm
| wdt_ID | Attributes | Values |
|---|---|---|
| 1 | Lasing Wavelength | 1062.9nm 1340.0nm |
| 2 | Emission Cross Section (E//C at 1064 nm) | 7.6x10⁻¹⁹cm² |
| 3 | Peak absorption wavelength | 808 nm |
| 12 | Absorption Cross Section (E//C at 808 nm) | 4.9x10⁻¹⁹cm² |
| 13 | Absorption Linewidth | 3nm |
| 14 | Relaxation Time of Terminal Lasing Level | 100µs |
| 15 | Absorption Coefficient (1% Nd) | 57cm⁻¹ with E//C @808 nm |
Nd:GdVO4 Common Type
wdt_ID Commodity name Size(mm) Coating
1
0.7%-0.8%Nd:GdVO₄
12*1.5*3.5
No
2
0.3% Nd:GdVO₄
3+/-0.1*3+/-0.1*18+0.2/-0.1
AR/AR@1064nm(R＜0.2%)&808nm(R＜0.5%)
3
1%Nd:GdVO₄
4*4*25
S1/S2:AR/AR@1063nm(R＜0.2%)
4
1%Nd:GdVO₄
4*4*35
S1:AR/AR@1063nm
S2:AR/AR@1063nm
5
1.5%Nd:GdVO₄
2*5*10
S1:AR/AR@1064nm (R＜0.2%)
S2:HR/HR@1064nm(R＞99.5%)+HT@808nm(T＞97%)
| wdt_ID | Commodity name | Size(mm) | Coating |
|---|---|---|---|
| 1 | 0.7%-0.8%Nd:GdVO₄ | 12*1.5*3.5 | No |
| 2 | 0.3% Nd:GdVO₄ | 3+/-0.1*3+/-0.1*18+0.2/-0.1 | AR/AR@1064nm(R＜0.2%)&808nm(R＜0.5%) |
| 3 | 1%Nd:GdVO₄ | 4*4*25 | S1/S2:AR/AR@1063nm(R＜0.2%) |
| 4 | 1%Nd:GdVO₄ | 4*4*35 | S1:AR/AR@1063nm S2:AR/AR@1063nm |
| 5 | 1.5%Nd:GdVO₄ | 2*5*10 | S1:AR/AR@1064nm (R＜0.2%) S2:HR/HR@1064nm(R＞99.5%)+HT@808nm(T＞97%) |
