Optical Isolator

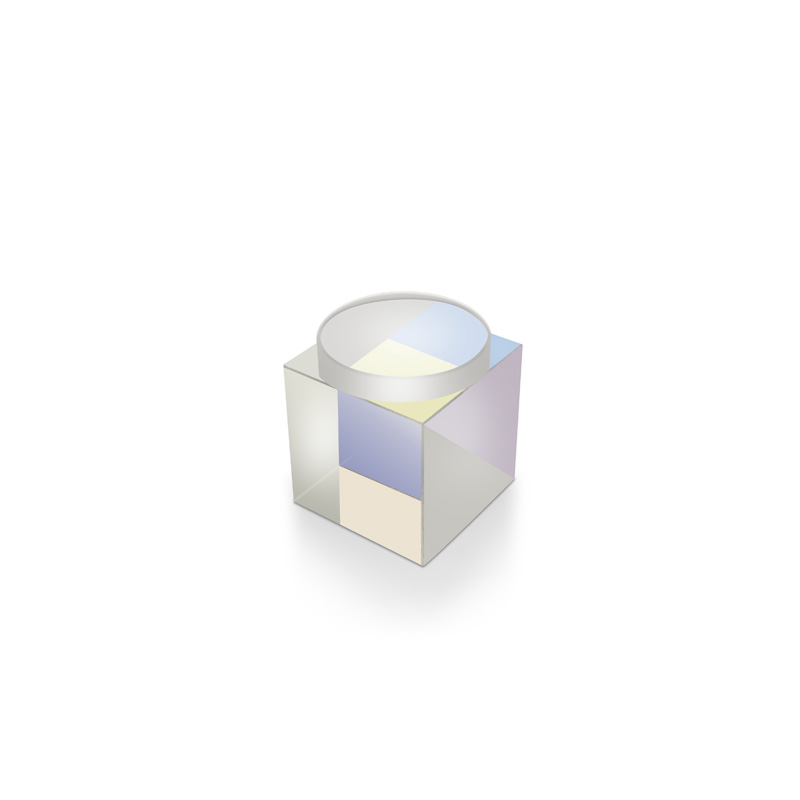

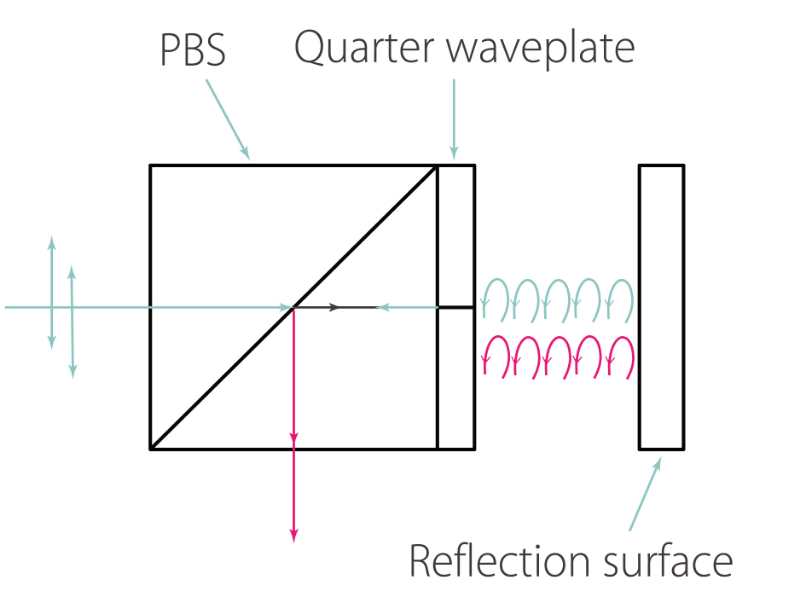

Optical isolator is a combination of a polarization Beamsplitter cube (PBS) and a quarter waveplate made of crystal quartz. Incident light is linearly polarized by PBS and converted to circular polarization.
Optical Isolator Main Specification
| wdt_ID | Attributes | Value |
|---|---|---|
| 76 | Material: | BK7+Quartz |
| 77 | Wavelength: | 400～2000nm |
| 78 | Dimension tolerance: | +/-0.2mm |
| 79 | Surface Quality: | 60/40 |
| 83 | Beam deviation: | ＜3' |
| 84 | TWD: | ＜λ/4 |
| 85 | Isolation | >20dB |
| 86 | Damage Threshold: | >500 MW/cm² |
| 87 | Coating: | AR, HR |
Optical Isolator Common Type
wdt_ID Type Dimension(mm) Isolation(dB) Wavelength(nm)
76
ISL005-532
5x5x5
>20
532
77
ISL010-532
10x10x10
>20
532
78
ISL012-532
12.7x12.7x12.7
>20
532
79
ISL005-633
5x5x5
>20
633
83
ISL010-633
10x10x10
>20
633
84
ISL012-633
12.7x12.7x12.7
>20
633
85
ISL005-780
5x5x5
>20
780
86
ISL010-780
10x10x10
>20
780
87
ISL012-780
12.7x12.7x12.7
>20
780
88
ISL005-1064
5x5x5
>20
1064
89
ISL010-1064
10x10x10
>20
1064
90
ISL012-1064
12.7x12.7x12.7
>20
1064
91
ISL005-1550
5x5x5
>20
1550
92
ISL010-1550
10x10x10
>20
1550
93
ISL012-1550
12.7x12.7x12.7
>20
1550
| wdt_ID | Type | Dimension(mm) | Isolation(dB) | Wavelength(nm) |
|---|---|---|---|---|
| 76 | ISL005-532 | 5x5x5 | >20 | 532 |
| 77 | ISL010-532 | 10x10x10 | >20 | 532 |
| 78 | ISL012-532 | 12.7x12.7x12.7 | >20 | 532 |
| 79 | ISL005-633 | 5x5x5 | >20 | 633 |
| 83 | ISL010-633 | 10x10x10 | >20 | 633 |
| 84 | ISL012-633 | 12.7x12.7x12.7 | >20 | 633 |
| 85 | ISL005-780 | 5x5x5 | >20 | 780 |
| 86 | ISL010-780 | 10x10x10 | >20 | 780 |
| 87 | ISL012-780 | 12.7x12.7x12.7 | >20 | 780 |
| 88 | ISL005-1064 | 5x5x5 | >20 | 1064 |
| 89 | ISL010-1064 | 10x10x10 | >20 | 1064 |
| 90 | ISL012-1064 | 12.7x12.7x12.7 | >20 | 1064 |
| 91 | ISL005-1550 | 5x5x5 | >20 | 1550 |
| 92 | ISL010-1550 | 10x10x10 | >20 | 1550 |
| 93 | ISL012-1550 | 12.7x12.7x12.7 | >20 | 1550 |
