REQUEST TO CUSTOM PRODUCT

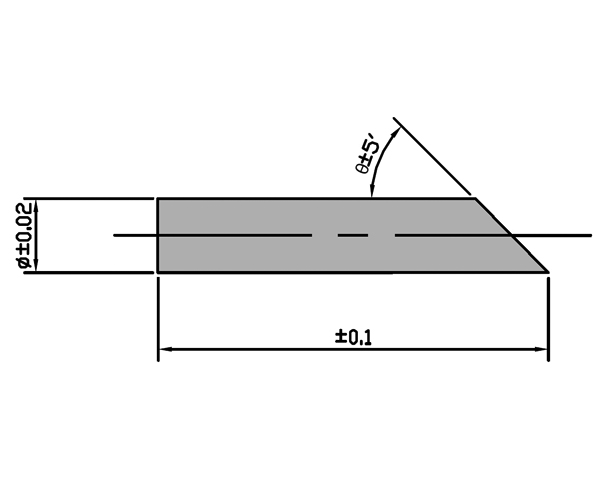

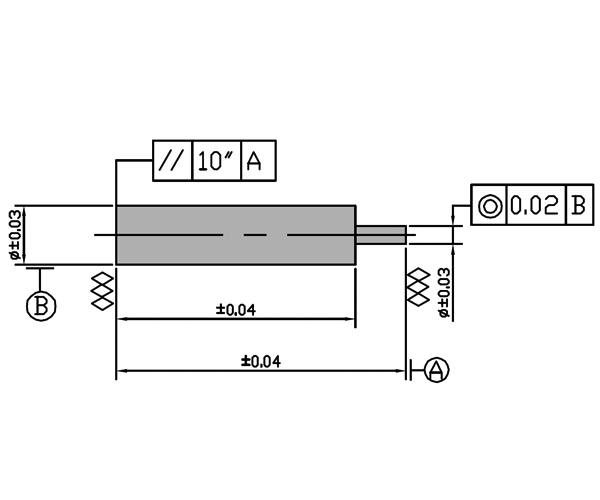

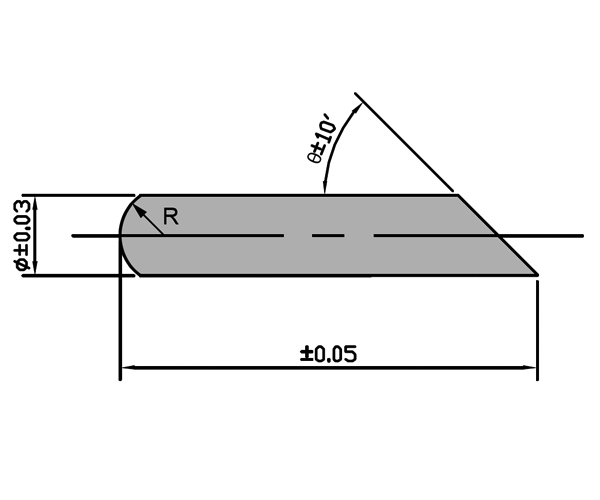

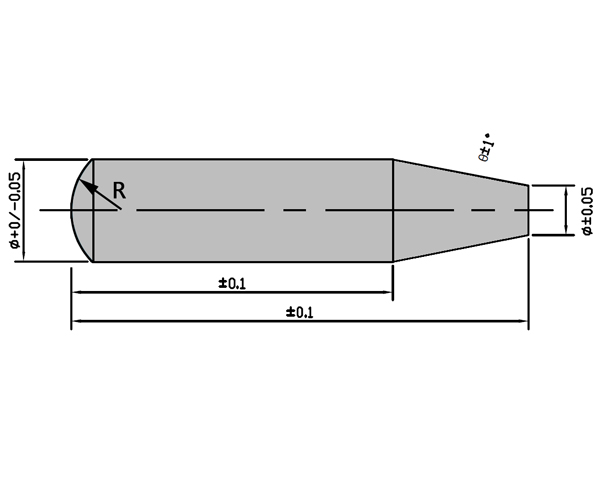

Endoscope Special Rod Lenses

Material:
Optical Glass

Type:
N<3,  N<0.5 for spherical surface
N λ/4~λ8 for flat surface

Surface Quality:
20/10~40/20

Diameter:
>Ø 0.7mm

Centering:
< 5’


Coating:
uncoated, or customized

Related Resource for reference


Image Information in a Rigid Rod Lens Endoscope
Relay lens system: for image transport, also called as Image Reversal System (Rod Lens, Achromatic Doublets, GRIN Relay)
Click to Download The Tutorial for Endoscope
