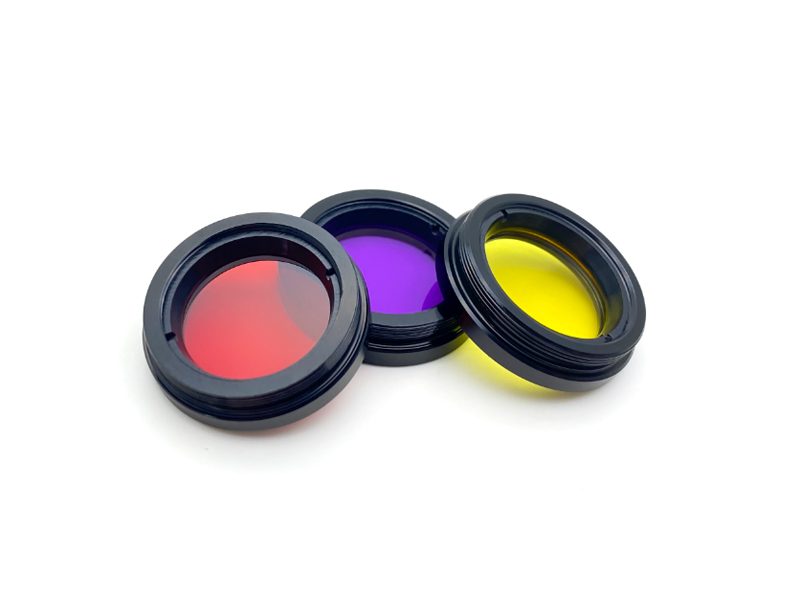

Band Pass Filter

Material:
N-BK7, Float Glass, Fused Silica

Size&Tolerance:
W(+0/-0.2)*H(+0/-0.2)*L(±0.1)mm

Surface Quality:
80/50~40/20

Parallelism:
≤3′

wdt_ID	Part No.	Dimension(mm)	CW	Transmission	FWHM(nm)	OD
27	BPF80001	11.4 x 11.4 x 2.5	800	>50.0%	17	4-O
50	BPF80002	φ14.0 x 1.55	800	>75.0%	20	3-O
51	BPF805001	φ25.0 x 0.55	805	>90.0%	20	3-A
52	BPF805002	6.0 x 6.0 x0.55	805	>85.0%	24	2-A
53	BPF806001	φ25.4 x 3.5	806	>75.0%	20	3-N
54	BPF808001	6.0 x 6.0 x0.55	808	>85.0%	20	2-A
105	BPF808002	φ10.0 x 0.55	808	>90.0%	20	2-A
106	BPF808003	φ25.0 x 0.55	808	>90.0%	20	3-A
107	BPF808004	6.0 x 6.0 x0.55	808	>85.0%	23	3-K
108	BPF810001	φ25.0 x 1.1	810	>70.0%	17	2-A
109	BPF810002	13.0 x 13.0 x 0.55	810	>85.0%	20	2-A
110	BPF810003	12.4 x 11.1 x 0.7	810	>90.0%	20	3-A
111	BPF810004	10.0 x 10.0 x 0.7	810	>90.0%	20	2-A
112	BPF810005	12.0 x 11.0 x 1.1	810	>90.0%	20	2-A
113	BPF811001	φ22.0 x 1.8	811	>70.0%	20	3-L
114	BPF813001	10.0 x 10.0 x 0.55	813	>90.0%	17	2-A
115	BPF813002	11.4 x 11.4 x 0.55	813	>90.0%	17	2-A
116	BPF813003	φ24.0 x 0.55	813	>90.0%	20	2-A
117	BPF830001	7.0 x 5.0 x 1.35	830	>85.0%	20	2-A
118	BPF830002	7.0 x 5.0 x 1.28	830	>85.0%	20	2-A
119	BPF830003	φ12.0 x 1.5	830	>85.0%	20	2A
120	BPF830004	φ15.0 x 1.1	830	>90.0%	20	2-A
121	BPF830005	9.0 x 7.0 x 1.1	830	>90.0%	15	3-L
122	BPF835001	φ25.0 x 0.55	835	>90.0%	20	3-K
123	BPF835003	φ20.0 x 1.1	835	>85.0%	20	3-A
