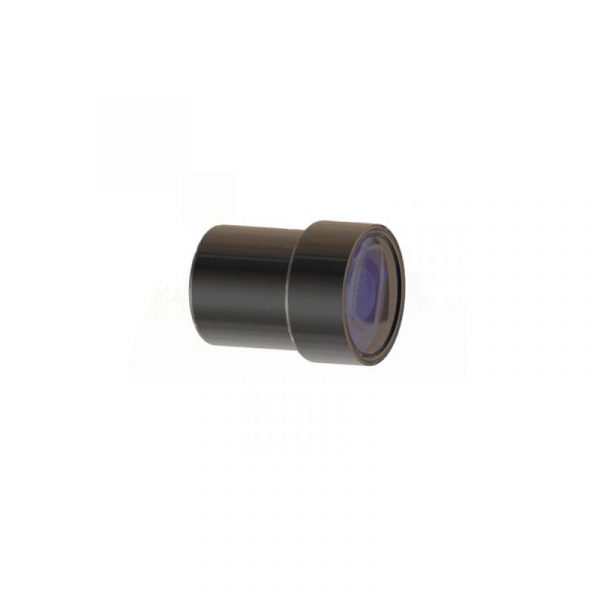

120° Endoscope Objective Lens

120° Endoscope Objective Lens

Disposable Use

Sensor matched:
1/6”

Depth of View Field:
8~100mm/3~30mm

E.F.L:
1.07

B.F.L:
1.431mm

Max Image Circle:
φ3.16mm

Structure:
5pcs lenses

Field of  View:
Vertical 76°/86°
Horizontal 96°/110°
Diagonal 120°/140°

F/No.:
6.0±5%

CRA:
<31°

In an endoscope used for medical treatment, a sleek design of the insertion tube section of the endoscope and a reduction in length of a rigid portion at the distal end of the insertion tube section are demanded in order to improve its operation property. It is thus indispensable that the objective lens used in the endoscope is constructed so that aberration is completely corrected in practical use, a lens contour is small, and the entire length is reduced.
wdt_ID Attribute Value
1 Sensor matched 1/6''
39 Structure 5 pcs lenses
40 Depth of View Field 8-100mm/3-30mm
41 Field of View Vertical
76°/86°
43 Field of View Horizontal 96°/110°
44 Field of View Diagonal 120°/140°
45 E.F.L 1.07
46 F/No. 6.0±5%
47 B.F.L 1.431mm
48 CRA <31°
49 Max Image Circle φ3.16mm
50 Optical Distortion -30%@120°/-48%@140°
51 Dimension Dia. 4.2/4.8 mm
52 Total Length 5.88±0.1mm
53 Thread M4*P0.25
54 Focusing Range 8-100mm/3-30mm
