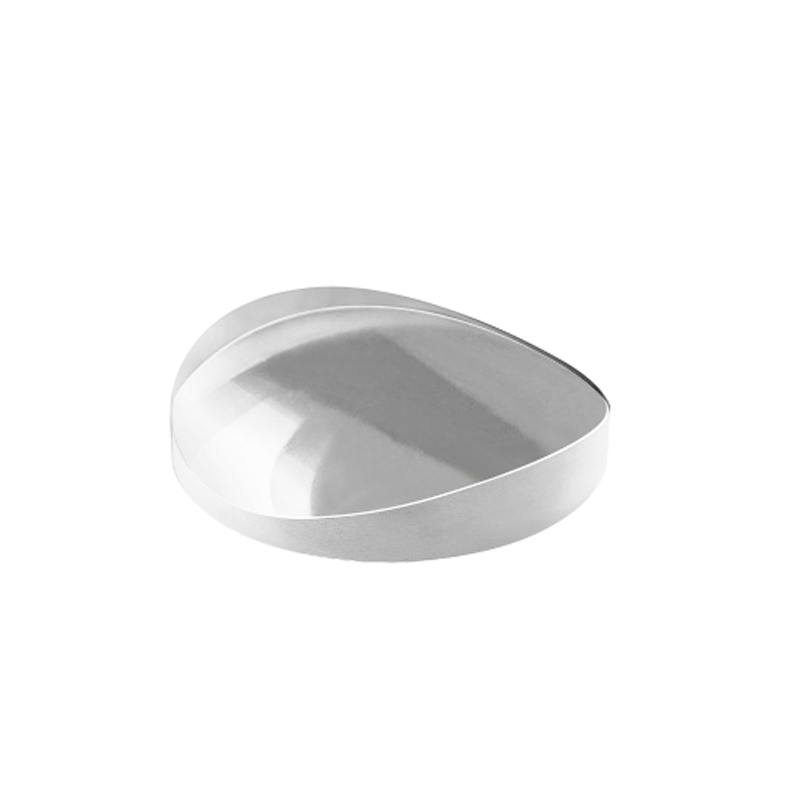

Plano-Convex Round Cylindrical Lens

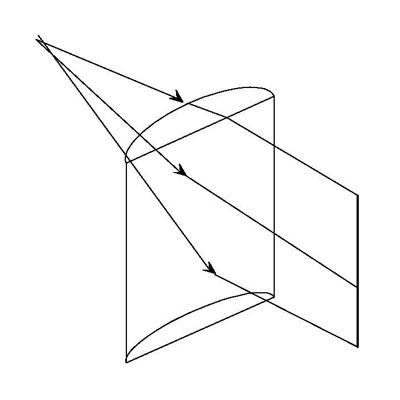

Plano convex round cylindrical lenses are utilized to compress light in 1 axis. In order to generate a line image from a point of light and to change the aspect ratio of an image, a positive (convex) cylindrical lens is used. It is also applied to focus collimated input light to a line.
| wdt_ID | Attributes | Values |
|---|---|---|
| 1 | Material | N-BK7, UV grade fused silica, CaF₂ etc |
| 17 | Diameter Tolerance | +0.0,-0.15mm |
| 18 | Center Thickness | +/-0.2mm |
| 21 | Surface Quality | 60/40~20/10 |
| 25 | Paraxial Focal Length | +/-2% |
| 54 | Surface Flatness | △N＜λ/4 |
| 57 | Centering | 3~5' |
| 59 | Coating | Uncoated Single Layer MgF₂ AR@250-400nm, Ravg＜0.5% AR@400-700nm, Ravg＜0.5% AR@650-1050nm, Ravg＜0.5% AR@1000-1650nm, Ravg＜0.5% |
wdt_ID P/N Material f (mm) Diameter(mm) t c (mm) t e (mm)
241
PCXL3012525
UV Fused Silica
25.0
12.5
3.85
2.0
551
PCXL3012550
UV Fused Silica
50.0
12.5
2.87
2.0
552
PCXL3012575
UV Fused Silica
75.0
12.5
2.57
2.0
553
PCXL30125100
UV Fused Silica
100.0
12.5
2.43
2.0
630
PCXL32550
UV Fused Silica
50.0
25.0
5.71
2.0
631
PCXL32575
UV Fused Silica
75.0
25.0
4.35
2.0
632
PCXL325100
UV Fused Silica
100.0
25.0
3.74
2.0
633
PCXL325150
UV Fused Silica
150.0
25.0
3.15
2.0
| wdt_ID | P/N | Material | f (mm) | Diameter(mm) | t c (mm) | t e (mm) |
|---|---|---|---|---|---|---|
| 241 | PCXL3012525 | UV Fused Silica | 25.0 | 12.5 | 3.85 | 2.0 |
| 551 | PCXL3012550 | UV Fused Silica | 50.0 | 12.5 | 2.87 | 2.0 |
| 552 | PCXL3012575 | UV Fused Silica | 75.0 | 12.5 | 2.57 | 2.0 |
| 553 | PCXL30125100 | UV Fused Silica | 100.0 | 12.5 | 2.43 | 2.0 |
| 630 | PCXL32550 | UV Fused Silica | 50.0 | 25.0 | 5.71 | 2.0 |
| 631 | PCXL32575 | UV Fused Silica | 75.0 | 25.0 | 4.35 | 2.0 |
| 632 | PCXL325100 | UV Fused Silica | 100.0 | 25.0 | 3.74 | 2.0 |
| 633 | PCXL325150 | UV Fused Silica | 150.0 | 25.0 | 3.15 | 2.0 |
