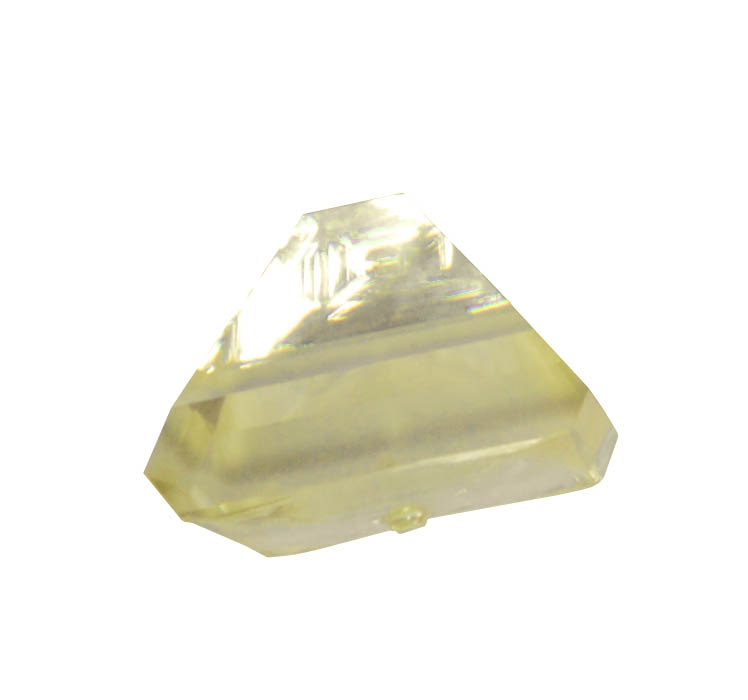

KTA Crystal
Potassium Titanyle Arsenate (KTiOAsO4, or KTA) crystal is an excellent nonlinear optical crystal for Optical Parametric Oscillation (OPO) Application. OPO devices based on KTAs are reliable, solid state, tunable laser radiation exhibiting energy conversion efficiencies above 50%. In addition, KTA has a very high damage threshold.
Advantages:
- Large nonlinear optical and electro-optical coefficients
- Wide angular bandwidth and small walk-off angle
- Broad temperature and spectral bandwidth
- Low dielectric constants, loss tangent and ionic conductivities (much less than that of KTP)
- High damage threshold
- Lower absorption in the 3-4 µm spectrum range than KTP
- Highly resistant to high intensity laser radiation.
wdt_ID | Attributes | Values |
---|---|---|
27 | Dimension Tolerance | W(+/-0.1)*H(+/-0.1)*L(+0.5/-0.1)mm |
28 | Angle Tolerance | ±0.25° |
29 | Surface quality | >20/10(MIL-PRF-13830B) |
30 | Perpendicularity | ≤10′ |
31 | Parallelism | ≤20″ |
32 | Chamfer | <0.2mmx45° |
33 | Flatness | λ/10@633nm |
34 | Wavefront distortion | λ/4@633nm |
35 | Chips | <0.1mm |
36 | Coating | C1---AR@1064(R<0.2%)&1533(R<0.5%)&3475(R<10%) |
37 | Damage Threshold | 500MW/cm² (1064nm, 10ns, 10Hz) |
wdt_ID | Attributes | Values |
---|---|---|
63 | Crystal Structure | Orthorhombic, Point group mm² |
64 | Lattice Parameters | a=13.125Å ,b=6.5716Å, c=10.786Å; Z=8 |
65 | Density | 3.454 g/cm³ |
66 | Mohs Hardness | ~ 5 |
67 | Melting Point | 1130°C |
68 | Curie Point | 880°C |
69 | Specific Heat | 0.687 cal/g°C (25°C) |
70 | Dielectric Constant | e ₑff=42 |
71 | Absorption Coefficient | <0.05%/cm @1μm and 1.5μm |
72 | Electrical Conductivity | 0.7-3.4 x10⁻⁶s/cm (c-axis, 22℃, 2KHz) |
73 | Color | Colorless |
74 | Hygroscopic Susceptibility | No |
75 | Transparency Range | 0.35μm ~ 5.3μm |
76 | Nonlinear Coefficients | d₃₁=2.8 pm/V d₃₂=4.2 pm/V d₃₃=16.2 pm/V |
77 | (@1.064μm) | d₂₄=3.2 pm/V d₁₅=2.3 pm/V |
78 | Electro-optical constants(low frequency) | r₃₃ 37.5 pm/V r₂₃ 15.4 pm/V r₁₃ 11.5 pm/V |
79 | Sellmeier Equations(λ in μm) | nx² = 1.90713+1.23522l2/(λ2-0.19692)-0.01025λ2 ny² = 2.15912+1.00099l2/(λ2-0.21844)-0.01096λ2 nz² = 2.14768+1.29559l2/(λ2-0.22719)-0.01436λ2 |
80 | Refractive Indexes (@1.064μm) | nₓ 1.783 nᵧ 1.7893 nz 1.8679 |
81 | SHG PM range | 1μm ~ 3μm |
82 | Cut angle for NCPM OPO | θ 90 φ 0 |
83 | Wavelength for NCPM OPO | Pump 1064 nm Signal 1533 nm Idler 3475 nm |
