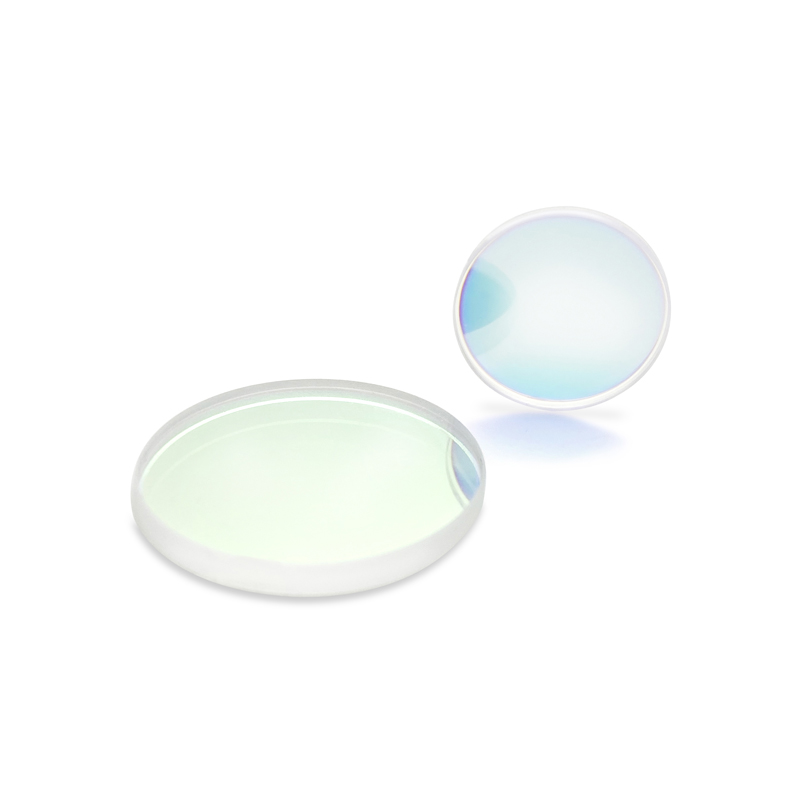

Dual Wavelength Dielectric Coated Mirrors
Material:
N-BK7, Borofloat,
Fused Silica
Surface Flatness:
λ/4~λ/10@633nm
Surface Quality:
60/40~10/5
CA:
≥80%
Coating:
HR@1064&532nm(R>99.0%), 45°AOI
| wdt_ID | Attributes | Values |
|---|---|---|
| 1 | Material | N-BK7, Borofloat, Fused Silica |
| 18 | Surface quality | 60/40~10/5 |
| 21 | Flatness | λ/4~λ/10@633nm |
| 25 | Parallelism | ≤3' |
| 54 | Bevel | ＜0.2mmx45° |
| 57 | CA | ≥80% |
| 58 | Chips | ＜0.2mm |
| 59 | Coating | HR@1064&532nm(R>99.0%), 45°AOI |
Dual Wavelength Dielectric coated mirrors is an optical mirror made of thin layers of dielectric coating layers deposited on an optical substrate. We offer dielectric laser mirrors for laser lines, for narrowband or broadband wavelength ranges covering spectrum from UV to IR. Wide selection of round, rectangular, elliptical or custom shape mirrors with flat, spherical concave or convex and cylindrical surfaces are available ex-stock. We also make coatings design for mirrors under custom requests for your particular applications.
HR@1064 & 532nm (R>99.0%), 45°AOI
 |
Dual Wavelength Dielectric Coated Mirrors Common Type
wdt_ID P/N Material Size(mm) Coating
241
DMC1127441
N-BK7
Φ12.7x4.0
HR@1064&532nm,45°AOI
242
DMC120441
N-BK7
Φ20.0x4.0
HR@1064&532nm,45°AOI
553
DMC1254441
N-BK7
Φ25.4x4.0
HR@1064&532nm,45°AOI
| wdt_ID | P/N | Material | Size(mm) | Coating |
|---|---|---|---|---|
| 241 | DMC1127441 | N-BK7 | Φ12.7x4.0 | HR@1064&532nm,45°AOI |
| 242 | DMC120441 | N-BK7 | Φ20.0x4.0 | HR@1064&532nm,45°AOI |
| 553 | DMC1254441 | N-BK7 | Φ25.4x4.0 | HR@1064&532nm,45°AOI |
